Hardware:

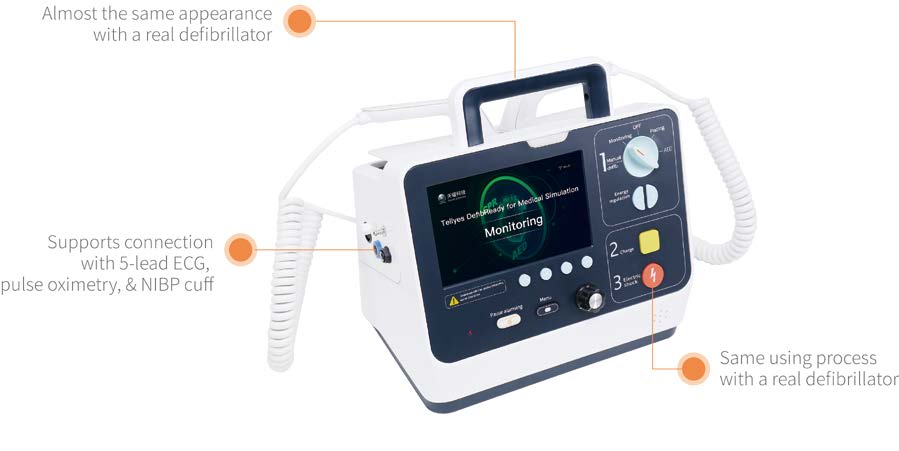

• Almost the same appearance with a real defibrillator.

• High-resolution touchscreen for parameters display & setup.

• Knobs & buttons can function just as a real defibrillator.

• Energy regulation with “+” ”-” buttons.

• Charging & discharging operations can be done with DefibReady.

• Defibrillation energy selection.

• No high voltage current, always safe for users.

• 4 modes available, including Monitor Mode, AED Mode, Manual Defibrillation Mode, Pacing Mode.

• DefibReady has a charging button and there will be charging sound effects just like a real defibrillator.

• A button for 2-min alarming pause. Press it under Monitor Mode, alarming light and sound will be turned off, but the parameters in the screen still have alarm flashing.

• Menu button for alarm, NIBP setup and log review in Monitor Mode.

• Different levels of alarm sounds and alarm light effects.

• Realistic defibrillation paddles & pads with visual reminder for right position.

• Buttons on defibrillation paddles for quick operation of energy regulation, charging and discharging.

• Automatic detection of paddle position, right placement will cause handle vibration during discharging.

• Defibrillation paddles can be removed for size change between adult and children operation.

• Automatic detection of pads connection in AED Mode. There will be voice prompt if pad falls.

• DefibReady comes with 5-lead cable, a pulse oximetry, a NIBP cuff, a cable temperature probe, and a CO2 sampling cannula.

• Real accessory connection experience with DefibReady like a real defibrillator.

• Detection of 5-lead ECG detachment.

• Detection of pulse oximetry detachment.

• Real NIBP cuff air-fill & air-release with audible sound.

• External power supply and built-in battery available. A full charge of the built-in battery supports 8-hour use.

• Instructions for use on DefibReady’s lateral side.

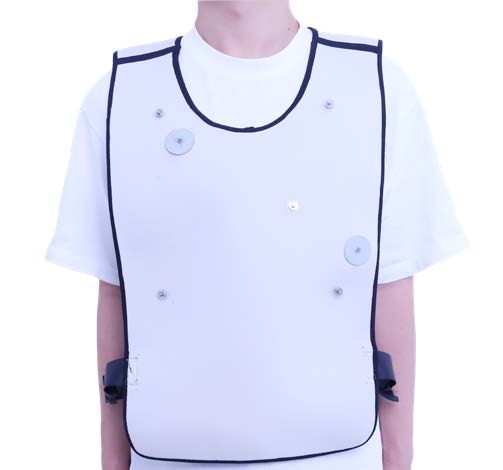

Defibrillation Vest:

• Can be worn by SP or manikins.

• Supports connection with 5-lead ECG.

• Supports the use of DefibReady defibrillation paddles & pads.

Control System:

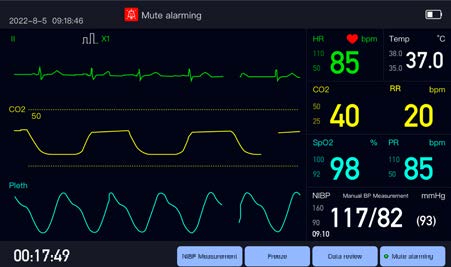

• Monitoring ECG, EtCO2, Pleth, HR, RR, SpO2, NIBP, etc.

• Adjustable ECG leads and gains; the gain ranges areÅ~1/4, Å~1/2, Å~1, Å~2, Å~4.

• Automatic and manual NIBP measurement available.

• Freeze & data review functions available under Monitor Mode; trend charts and NIBP data can be viewed.

• Alarms can be setup; when a parameter exceeds its alarming range, alarm logs will be generated automatically.

• Status bar will display multiple alarming messages in a loop.

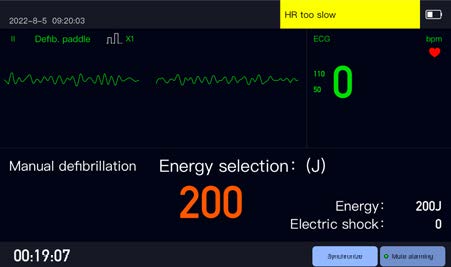

• Defibrillation energy can be adjusted; display current defibrillation energy.

• There will be a voice prompt when the charging is completed.

• Cumulative number of electric shocks and the energy of the latest electric shock are displayed.

• When in synchronized cardioversion mode, “Synchronization” will appear on the screen.

• ECG waveforms change after successful defibrillation.

• Complete process training of AED.

• AED voice and visual guide.

• Intelligent analysis of heart rhythm to indicate whether to perform an electric shock.

• Metronome available for CPR operation.

• Adjustable CPR modes and duration.

• On-demand pacing & fixed pacing.

• Web-based instructor software.

• Scan QR code for defibrillator connection & control.

• Built-in 16 defibrillation and pacing cases, including adult and pediatric cases like Atrial Fibrillation,Ventricular Fibrillation, Cardiac Arrest, Pace-making, Tachycardia.

• Instructor software can display the case flow and manually control the case.

• Resuscitation drugs available to enrich the rescue process.

• Compliant with 2020 AHA guidelines.

• Instructor software can view the vital signs of different case states, including ECG, heart rate, EtCO2, respiratory rate, etc.

• Operation logs can be generated automatically and displayed in instructor software.

• The case result can be survived, dead or treatment stopped.
